Positector ®

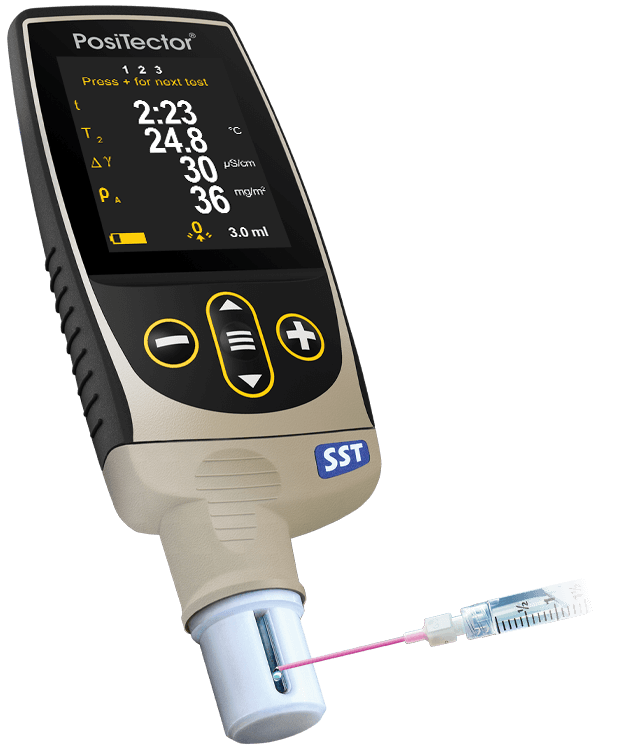

SSTSoluble Salt Tester for measuring the concentration of soluble salts on metal surfaces
Measures the concentration of soluble salts (salt contamination) on metal surfaces in accordance with ISO 8502-6, 8502-9.
- Conductivity probe specifically designed for ISO 8502-6, 9—the Bresle Method
- Displays test duration, sample temperature, conductivity (µS/cm) and surface density (mg/m2 or µg/cm2)
- Easy 1-2-3 gage interface guides users through the Bresle test method
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
- PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
- USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
- Certificate of Calibration showing traceability to NIST included (Long Form)
Conforms to ISO 8502-6/8502-9, US Navy PPI 63101-000, U.S. Navy NAVSEA NSI 009-32, AS 3894.6, IMO MSC.215(82), IMO MSC.244(83), SSPC Guide 15, ISO 11127-6, ASTM D4940
Features
Simle
- Conductivity probe specifically designed for ISO 8502-6,9—the Bresle Method
- Displays test duration, sample temperature, conductivity (µS/cm) and surface density (mg/m2 or µg/cm2)
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW On-gage help explains menu items at the touch of a button
- Easy 1-2-3 gage interface guides users through the Bresle test method
- Automatic storage of a background (blank) measurement—handy when performing multiple salt tests
Durable
- NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- Shock-absorbing protective rubber holster for added impact resistance
- Two year warranty on gage body AND probe
Accurate
- Long Form Certificate of Calibration showing traceability to NIST included

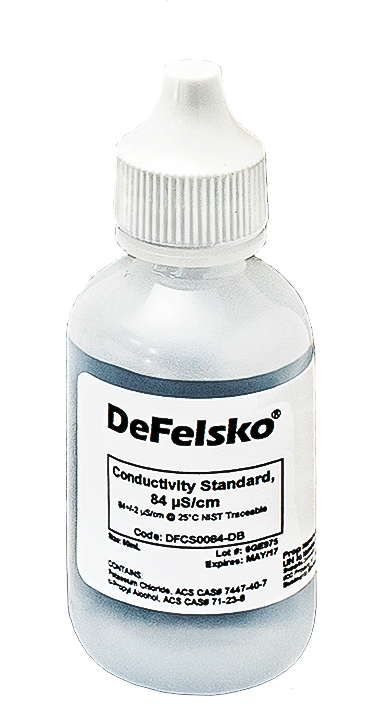

- Includes certified conductivity standard (calibration solution) to verify probe accuracy. Certificate included.
- Automatic temperature normalization and sample temperature reporting
- Conforms to ISO 8502-6/8502-9, US Navy NSI 009-32, US Navy PPI 63101-000, AS 3894.6, IMO MSC.215(82), IMO MSC.244(83), SSPC Guide 15, ISO 11127-6, ASTM D4940
Versatile
- PosiTector body accepts all PosiTector SST, 6000, 200, DPM, IRT, RTR, SPG, SHD, BHI, and UTG probes easily converting from a soluble salt tester to a coating thickness gage, dew point meter, surface profile gage, hardness tester, or ultrasonic wall thickness gage
- Ideal for determination of water-soluble contaminants in non-metallic blast media
- A selection of kits include everything needed to retrieve and analyze soluble salts on surfaces
- Adjustable for various Bresle patch volumes
- Selectable display languages
- NEW Auto rotating display with Flip Lock
Powerful
- Track and record test duration in accordance with ISO 8502-6
- NEW Screen Capture—save 100 screen images for record keeping and review
- NEW Instant-on feature quickly powers up the gage if recently powered down
- NEW Up to 30% longer battery life
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
- PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Software Updates via web keep your gage current
- Includes PosiSoft suite of software for viewing and reporting data
- Every stored measurement is date and time stamped
Specifications
| Range | 0 – 1,500 μS/cm 0 – 6,000 mg/m2 0.0 – 600.0 μg/cm2 |
|---|---|
| Resolution* | 1 μS/cm, 1mg/m2, 0.1 μg/cm2 |
| Accuracy | ± 2 μS/cm (0 – 200 μS/cm) ± 10 μS/cm (>200 – 600 μS/cm) ± 20 μS/cm (>600 – 1500 μS/cm) |
| Temperature Range | 0 – 50° C (32 – 122° F) |
| Normalization Temperature | 25° C (77° F) |
| Test Cell Volume | 1 ml |
| Size^ | 127 x 66 x 25.4 mm (5" x 2.6" x 1") |
| Weight^ | 137 g (4.9 oz.) without batteries |
* Hi Res Mode increases resolution to 0.1 μS/cm (0 - 200 μS/cm)
^ Size and weight are for the PosiTector gage body only and do not include the probe.
Standard Models
Includes ALL features as shown above plus...
- NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded
Advanced Models
Includes ALL features as shown above plus...
- NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches
- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
See probe compatibility chart for more information.

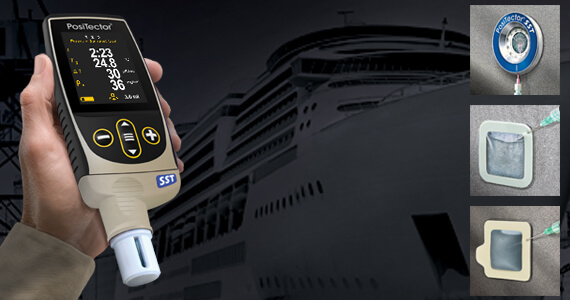

Bresle Test Method Patch Options

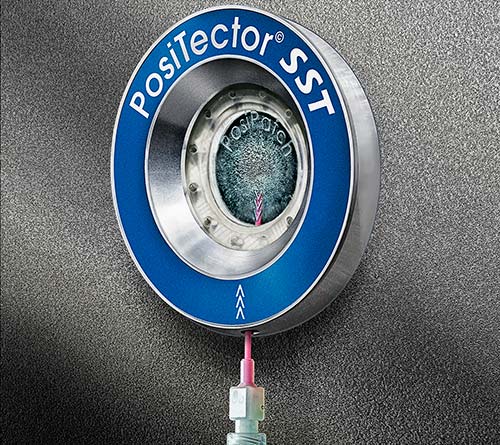

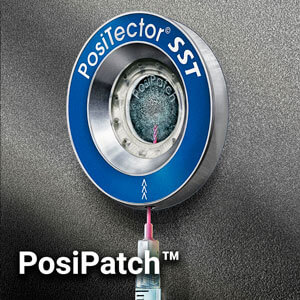

PosiPatch™
Reusable Bresle patch with Standard or Flexible magnetic ring—lowest per test cost

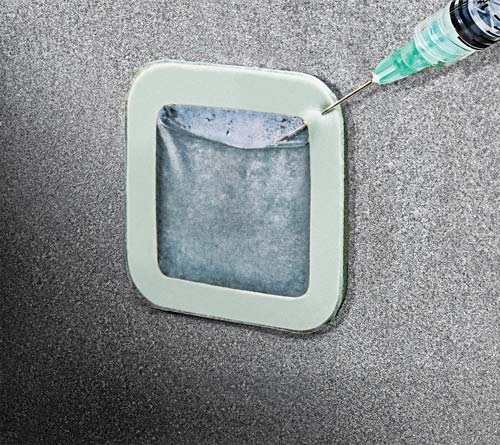

DeFelsko Adhesive Patch
Self-adhesive, polyurethane Bresle Test patches

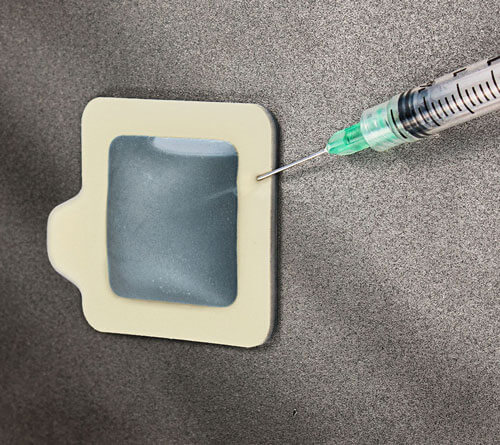

Latex Adhesive Patch
Latex Bresle Test patch with easy-open tabs and low-tack adhesive for easy removal
Models
Includes all the above features, and storage of 1,000 readings in a single batch

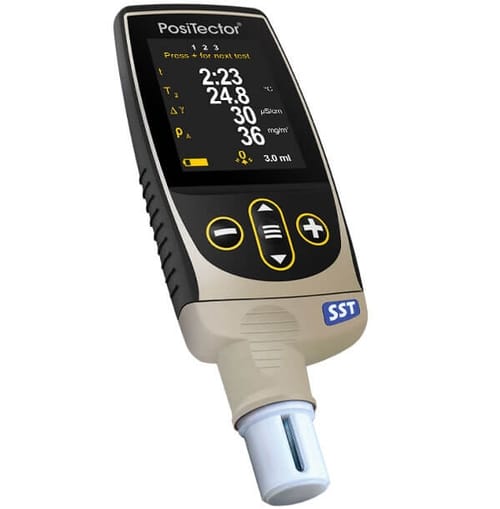

SST1
inclusions
- PosiTector Standard Gage Body
- PosiTector SST Probe
- Nylon carrying cases with shoulder strap
SSTKITP1
inclusions
- PosiTector Standard Gage Body
- PosiTector SST Probe
- PosiPatch (5)
- Standard Magnetic Ring
- Syringe and Plastic Tip (2)

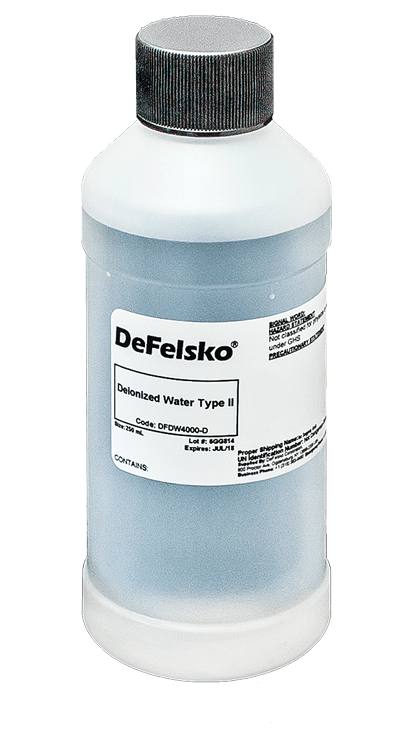

- 250 ml DI Water
- Cup (5)
- Hard-shell Carrying Case

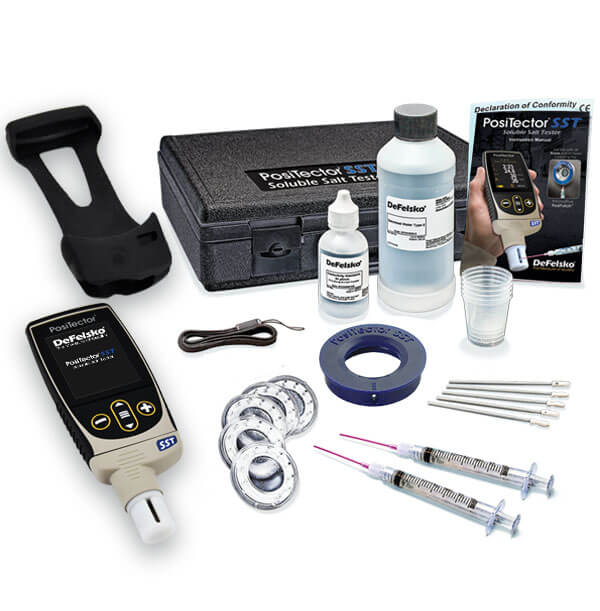

SSTKITPF1
inclusions
- PosiTector Standard Gage Body
- PosiTector SST Probe
- PosiPatch (5)
- Flexible Magnetic Ring
- Syringe and Plastic Tip (2)
- 250 ml DI Water
- Cup (5)
- Hard-shell Carrying Case
SSTKITD1
inclusions
- PosiTector Standard Gage Body
- PosiTector SST Probe
- DeFelsko Adhesive Patch (25)
- Syringe and Needle (2)
- 250 ml DI Water
- Cup (5)
- Hard-shell Carrying Case

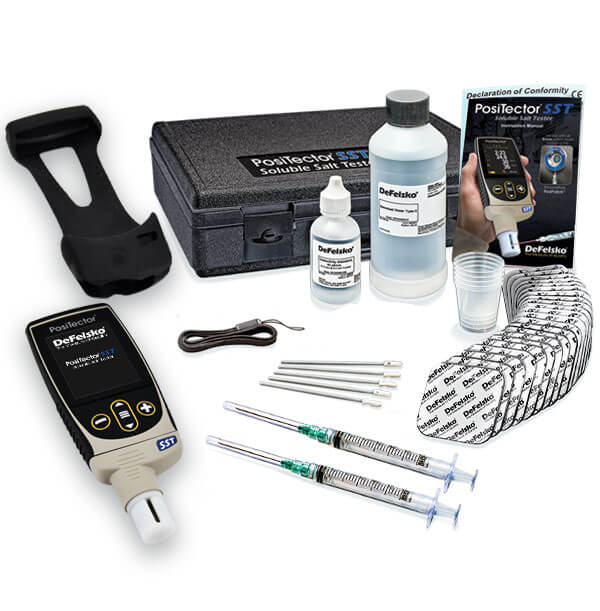

SSTKITL1
inclusions
- PosiTector Standard Gage Body
- PosiTector SST Probe
- Latex Adhesive Patch (25)
- Syringe and Needle (2)
- 250 ml DI Water
- Cup (5)
- Hard-shell Carrying Case
Software

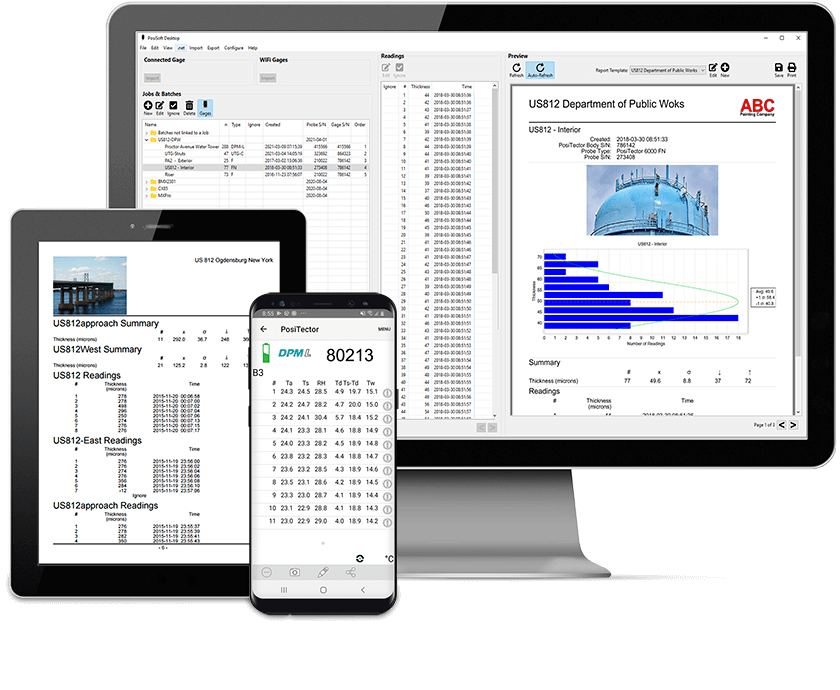

PosiSoft Desktop
Powerful desktop software for downloading, archiving, and reporting measurement data. No internet connection required.
- Simple, intuitive user interface
- Import readings directly from the gage via USB, WiFi, or legacy PosiSoft Desktop versions
- Fully integrates with PosiSoft.net—backup and synchronize jobs, batches, readings, and report templates to the cloud. Click here to learn more about PosiSoft.net
PosiTector App
An easy-to-use mobile app (iOS/ Android) that connects to your PosiTector Advanced, PosiTector Smartlink, or PosiTest AT-A. Compatible with PosiSoft.net.
Learn MorePosiSoft USB
A simple gage interface to retrieve data in a manner similar to a flash drive. No software to install or internet connection required.

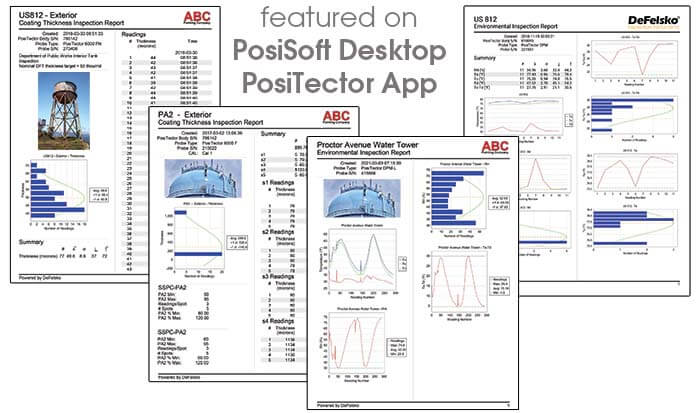

Learn MorePosiSoft Custom PDF Report Generator
Easily create reports from your measurement data in seconds
- Generate custom, professional PDF reports
- Include inspection information such as on-site pictures, screen captures, notes and more to communicate important details
- Create and save multiple custom layouts as templates – insert cover pages, add logos/images, and select font and point size
- Select the information to include for each product type – charts, histograms, readings, time stamps and more
- Compile multi-batch reports from one or more probes and instrument types
PosiTector Developer Resources
From wired USB to WiFi wireless technology, DeFelsko instruments offer data management solutions for even the most advanced software integrations. Accessing your stored or live streaming data is simpler and more flexible than ever before. PosiTector and PosiTest AT-A instruments have the ability to integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols.
Learn MoreF.A.Q.
Accessories

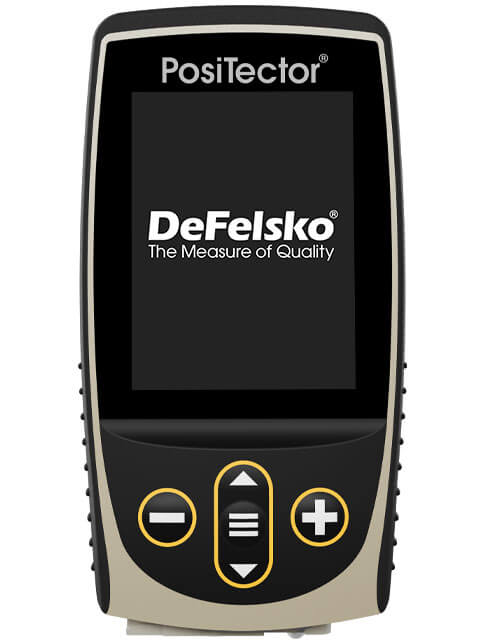

PosiTector Gage Bodies
PosiTector Gage Bodies can be used with all PosiTector probes. Choose from Standard or Advanced models.

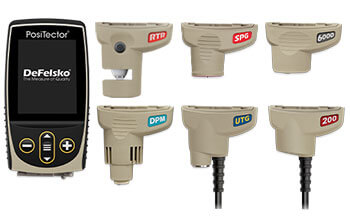

PosiTector Probes
PosiTector bodies accept all PosiTector probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, hardness and ultrasonic thickness gage.

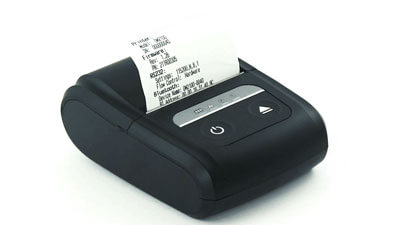

Bluetooth Printer
Battery-operated andlight weight, this Bluetooth Printer prints readings and statistical summariesvia Bluetooth from Advanced models.
AC Power Kit
Use for continuous operation. This kit supplies several alternate power solutions for your battery-operated PosiTector. Operate your gage without the need for batteries.
Pelican Cases for PosiTector Inspection Kits
Heavy-duty, waterproof Pelican cases complete with a custom foam insert to securely hold your PosiTector instrument.
.jpg)
Protective Lens Shield
Pack of 5 thin plastic lens shields to protect PosiTectordisplay from paint overspray. One lens shield included in every PosiTectorpurchase.

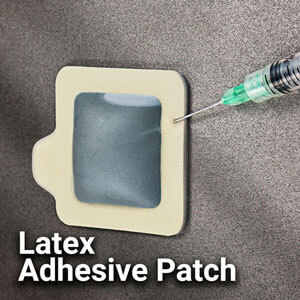

Latex Adhesive Patch
Latex Bresle Test patch with easy-open tabs and low-tack adhesive for easy removal

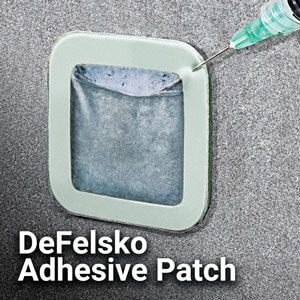

DeFelsko Adhesive Patch
Self-adhesive, polyurethane Bresle Test patches

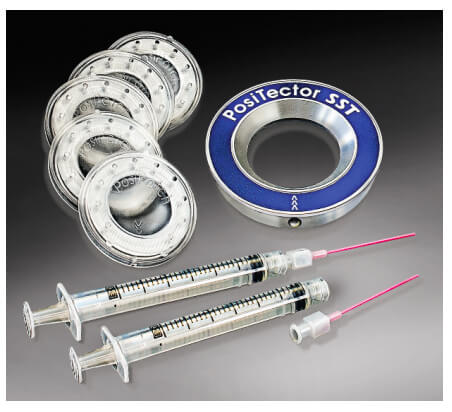

PosiPatch Starter Kit
For use with existing conductivity meters. Try the revolutionary, reusable Bresle Method PosiPatch with a low cost trial pack.

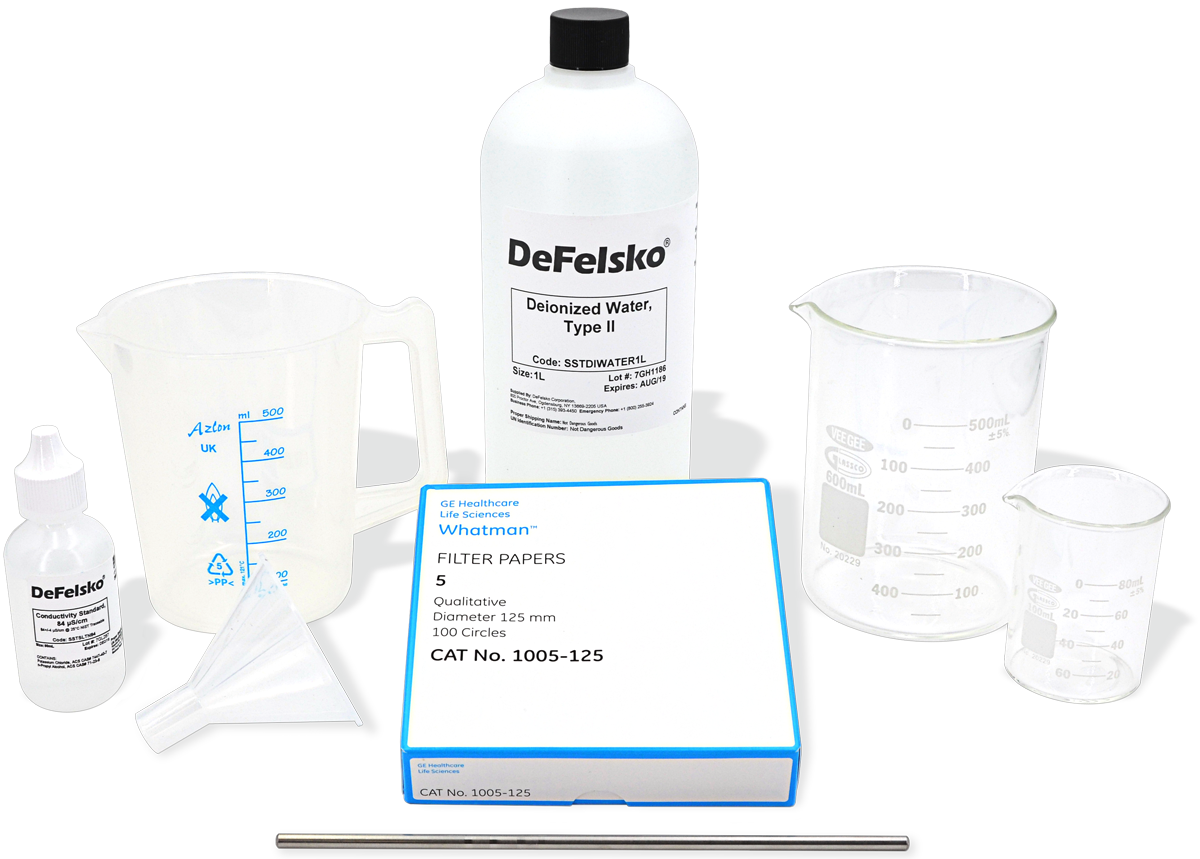

PosiTector SST Abrasives Test Kit
Measures the concentration of water-soluble contaminates in blast cleaning abrasives

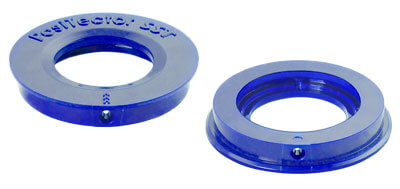

Flexible Magnetic Ring
Like the Standard Magnetic Ring PosiPatch, the NEW Flexible Magnetic ring leaves no messy adhesive residue to clean but is intended for pipes and other tight-diameters.
