Positector ®
SHDShore Hardness Durometers for the indentation hardness of non-metallic materials
Handheld electronic instrument measures the indentation hardness of non-metallic materials.
Two durometer models are available for different hardness ranges—Shore A and Shore D.
- User-adjustable measurement time with on-screen countdown to conform to national and international standards
- Auto Ignore mode disregards hardness readings below 20 and above 90 per international standards
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
- PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
- USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
- Certificate of Calibration showing traceability to NIST included (Long Form)
Conforms to ASTM D2240, ISO 868/7267/7619, and DIN 53505
Features
Simle
- Easy-to-read digital display
- User-adjustable measurement time with on-screen countdown to conform to national and international standards
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW On-gage help explains menu items at the touch of a button
- RESET feature instantly restores factory settings
Durable
- NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- Shock-absorbing protective rubber holster for added impact resistance
- Hardened steel indentor
- Two year warranty on gage body AND probe
Accurate
- Certificate of Calibration showing traceability to NIST included
- Auto Ignore mode disregards hardness readings below 20 and above 90 per international standards
- Hi-RES mode increases displayed resolution for precision applications
- Includes test block to verify operation
- Conforms to ASTM D2240, ISO 868/7267/7619 and DIN 53505
Versatile
- PosiTector body accepts all PosiTector SHD, BHI, 6000, 200, DPM, IRT, RTR, SPG, SST, and UTG probes easily converting from a hardness tester to a coating thickness gage, dew point meter, surface profile gage, soluble salt tester, or ultrasonic wall thickness gage
- Selectable display languages
- NEW Auto rotating display with Flip Lock
Powerful
- Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
- NEW Screen Capture—save 100 screen images for record keeping and review
- NEW Instant-on feature quickly powers up the gage if recently powered down
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Every stored measurement is date and time stamped
- Includes PosiSoft suite of software for viewing and reporting data
- Software Updates via web keep your gage current
Specifications
| Measurement Range | 0 – 100 |
| Accuracy | ± 1 |
| Resolution | 0.1 |
| Body Size* | 127 x 66 x 25.4 mm (5" x 2.6" x 1") |
| Weight* | 137 g (4.9 oz.) without batteries |
* Size and weight are for the PosiTector gage body only and do not include the probe
All gages come complete with test block, protective rubber holster, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, Long Form Certificate of Calibration traceable to NIST, protective lens shield, USB cable, PosiSoft Software, two (2) year warranty.
Standard Models
Includes ALL features as shown on left plus...
- NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded
Advanced Models
Includes ALL features as shown on left plus...
- NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches
- Auto Sub-Batch—automatically create sub-batches after the required number of readings are taken
- Live graphing of measurement data
- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
- Store thickness, profile, environmental, wall thickness, and hardness measurements in individual batches
See probe compatibility chart for more information.
Models
Includes all the above features, and storage of 1,000 readings per probe

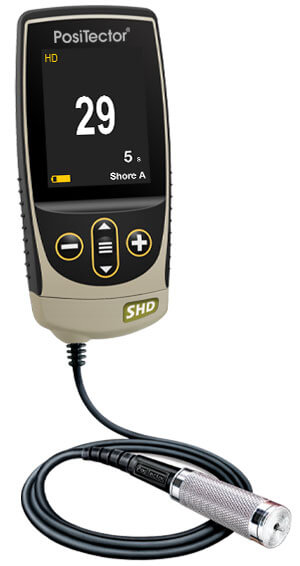

SHD A1
APPLICATION

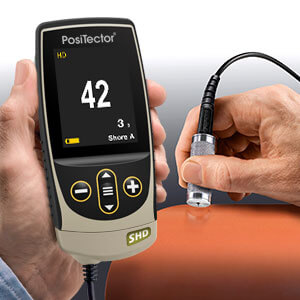

- Soft to hard materials such as soft rubber, elastomers, neoprene, silicone, etc.
MEASURING RANGE
- 0 - 100 Shore A
ACCURACY
- ± 1
RESOLUTION
- 0.1
SHD D1
APPLICATION
- Medium to extra hard materials such as hard rubber, epoxies, hard plastics, PVC, acrylic, etc.
MEASURING RANGE
- 0 - 100 Shore D
ACCURACY
- ± 1
RESOLUTION
- 0.1
Software
PosiSoft Desktop
Powerful desktop software for downloading, archiving, and reporting measurement data. No internet connection required.
- Simple, intuitive user interface
- Import readings directly from the gage via USB, WiFi, or legacy PosiSoft Desktop versions
- Fully integrates with PosiSoft.net—backup and synchronize jobs, batches, readings, and report templates to the cloud. Click here to learn more about PosiSoft.net
PosiTector App
An easy-to-use mobile app (iOS/ Android) that connects to your PosiTector Advanced, PosiTector Smartlink, or PosiTest AT-A. Compatible with PosiSoft.net.
Learn MorePosiSoft USB
A simple gage interface to retrieve data in a manner similar to a flash drive. No software to install or internet connection required.
Learn MorePosiSoft Custom PDF Report Generator
Easily create reports from your measurement data in seconds
- Generate custom, professional PDF reports
- Include inspection information such as on-site pictures, screen captures, notes and more to communicate important details
- Create and save multiple custom layouts as templates – insert cover pages, add logos/images, and select font and point size
- Select the information to include for each product type – charts, histograms, readings, time stamps and more
- Compile multi-batch reports from one or more probes and instrument types
PosiTector Developer Resources
From wired USB to WiFi wireless technology, DeFelsko instruments offer data management solutions for even the most advanced software integrations. Accessing your stored or live streaming data is simpler and more flexible than ever before. PosiTector and PosiTest AT-A instruments have the ability to integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols.
Learn MoreF.A.Q.
Accessories
PosiTector Gage Bodies
PosiTector Gage Bodies can be used with all PosiTector probes. Choose from Standard or Advanced models.
PosiTector Probes
PosiTector bodies accept all PosiTector probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, hardness and ultrasonic thickness gage.
Bluetooth Printer
Battery-operated andlight weight, this Bluetooth Printer prints readings and statistical summariesvia Bluetooth from Advanced models.
PosiTector Case
Convenient hard shell case for carrying a PosiTector gage body and multiple probes
AC Power Kit
Use for continuous operation. This kit supplies several alternate power solutions for your battery-operated PosiTector. Operate your gage without the need for batteries.
Pelican Cases for PosiTector Inspection Kits
Heavy-duty, waterproof Pelican cases complete with a custom foam insert to securely hold your PosiTector instrument.
.jpg)
Protective Lens Shield
Pack of 5 thin plastic lens shields to protect PosiTectordisplay from paint overspray. One lens shield included in every PosiTectorpurchase.

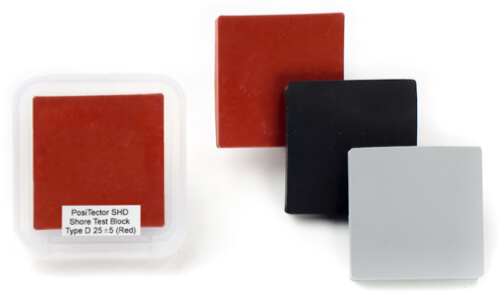

PosiTector SHD Test Blocks
Ideal for checking the operation of durometers.

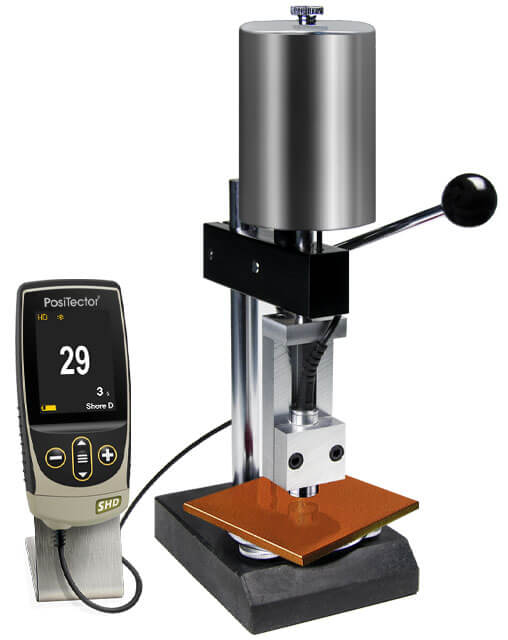

PosiTector SHD Test Stand
Helps reduce operator influence by ensuring the probe is placed perpendicular in a controlled, repeatable way.

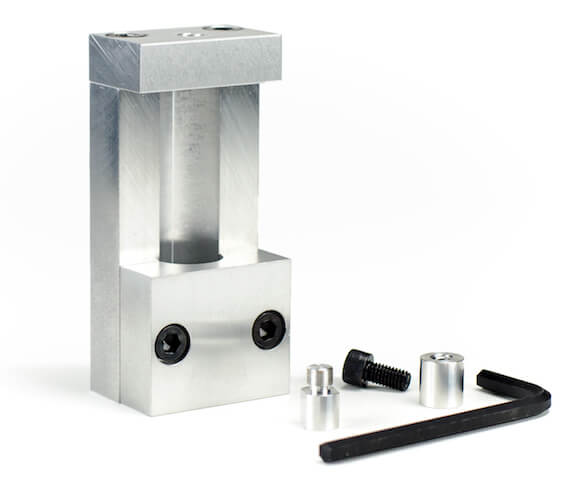

PosiTector SHD Universal Adaptor
For use with threaded mounts in other test stands and calibrators.
