Positector^®

BHI

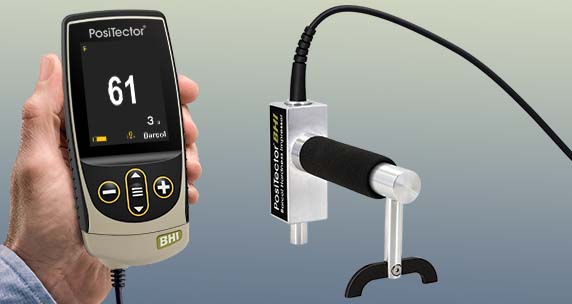

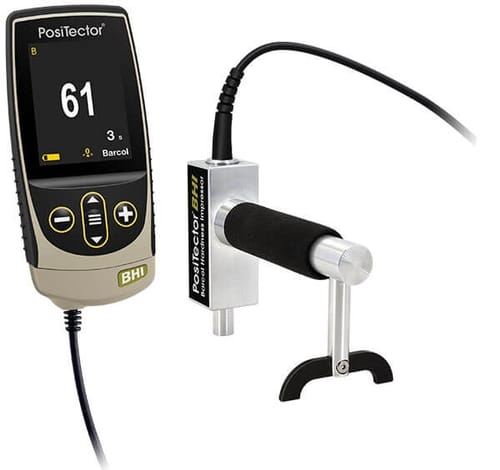

Barcol Hardness Impressor

Measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics, and fiber-reinforced plastic

Easy-to-read digital display
Comparable to 934-1 Barcol Hardness Tester
NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
Certificate of Calibration included

Conforms to ASTM B648/D2583, DIN EN 59, and AS/NZS 3572.22

Features

Simle

Easy-to-read digital display
Comparable to 934-1 Barcol Hardness Tester
User-adjustable measurement time with on-screen countdown
Includes spare, field replaceable indentor with replacement tool
NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
NEW On-gage help explains menu items at the touch of a button
RESET feature instantly restores factory settings

Durable

NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
NEW Ergonomic design with durable rubberized grip
Shock-absorbing protective rubber holster for added impact resistance

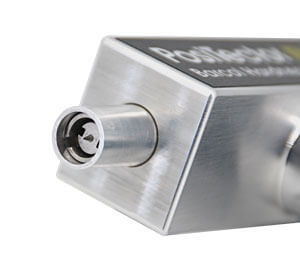

Hardened steel indentor
Two year warranty on gage body AND probe

Accurate

Certificate of Calibration included
Hi-RES mode increases displayed resolution for precision applications

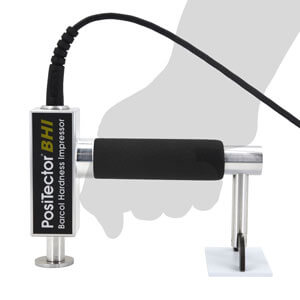

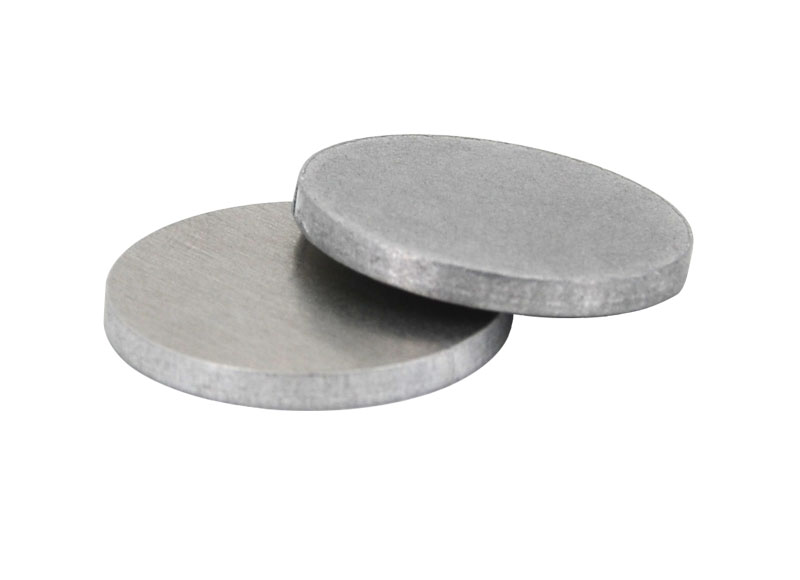

Includes hard and soft aluminum alloy test disks and leveling plate to verify gage operation
Conforms to national and international standards including ASTM

Versatile

PosiTector body accepts all PosiTector SHD, BHI, 6000, 200, DPM, IRT, RTR, SPG, SST, and UTG probes easily converting from a hardness tester to a coating thickness gage, dew point meter, surface profile gage, soluble salt tester, or ultrasonic wall thickness gage
1 and 2 point calibration options with Cal Reset to restore factory settings
Selectable display languages
NEW Auto rotating display with Flip Lock

Powerful

Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
NEW Screen Capture—save 100 screen images for record keeping and review
NEW Instant-on feature quickly powers up the gage if recently powered down
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
Every stored measurement is date and time stamped
Includes PosiSoft suite of software for viewing and reporting data
Software Updates via web keep your gage current

Specifications

Measurement Range	20 – 100 Barcols
Accuracy	± 2 Barcol
Resolution	0.1 Barcol
Size*	127 x 66 x 25.4 mm (5" x 2.6" x 1")
Weight*	137 g (4.9 oz.) without batteries
Probe Size	145 x 97 x 64 mm (5.7" x 3.8" x 2.5")
Probe Headroom	140 mm (5.5")
Probe Weight	400 g (14.1 oz.)

* Size and weight are for the PosiTector gage body only and do not include the probe

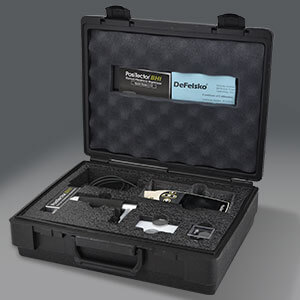

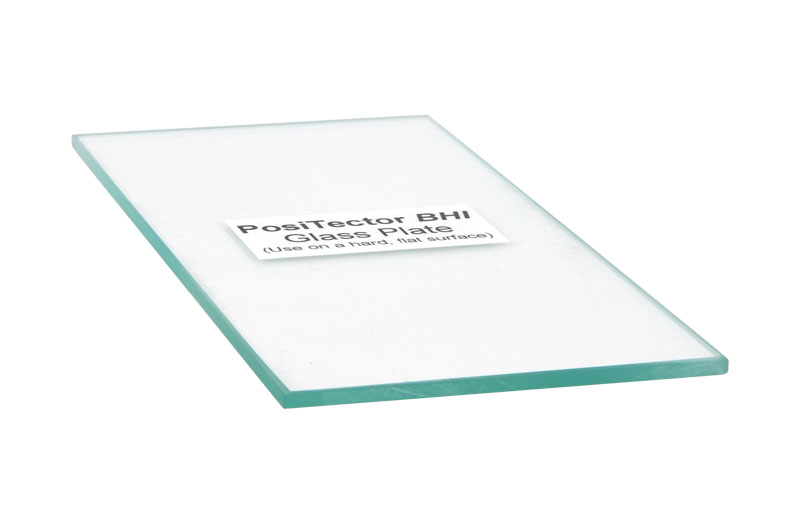

All gages come complete with test disks (2), leveling plate, replacement indentor with replacement tool, glass plate, protective rubber holster, wrist strap, 3 AAA batteries, instructions, hard shell case, protective lens shield, Long Form Certificate of Calibration, USB cable, PosiSoft Software, two (2) year warranty.

Standard Models

Includes ALL features as shown on left plus...

NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on left plus...

NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches
Auto Sub-Batch—automatically create sub-batches after the required number of readings are taken
Live graphing of measurement data
NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
Store thickness, profile, environmental, wall thickness, and hardness measurements in individual batches

See probe compatibility chart for more information.

Models

Includes all the above features, and storage of 1,000 readings per probe

BHI1

View PDF

Software

PosiSoft Desktop

Powerful desktop software for downloading, archiving, and reporting measurement data. No internet connection required.

Simple, intuitive user interface
Import readings directly from the gage via USB, WiFi, or legacy PosiSoft Desktop versions
Fully integrates with PosiSoft.net—backup and synchronize jobs, batches, readings, and report templates to the cloud. Click here to learn more about PosiSoft.net

Learn More

PosiTector App

An easy-to-use mobile app (iOS/ Android) that connects to your PosiTector Advanced, PosiTector Smartlink, or PosiTest AT-A. Compatible with PosiSoft.net.

Learn More

PosiSoft USB

A simple gage interface to retrieve data in a manner similar to a flash drive. No software to install or internet connection required.

Learn More

PosiSoft Custom PDF Report Generator

Easily create reports from your measurement data in seconds

Generate custom, professional PDF reports
Include inspection information such as on-site pictures, screen captures, notes and more to communicate important details
Create and save multiple custom layouts as templates – insert cover pages, add logos/images, and select font and point size
Select the information to include for each product type – charts, histograms, readings, time stamps and more
Compile multi-batch reports from one or more probes and instrument types

PosiTector Developer Resources

From wired USB to WiFi wireless technology, DeFelsko instruments offer data management solutions for even the most advanced software integrations. Accessing your stored or live streaming data is simpler and more flexible than ever before. PosiTector and PosiTest AT-A instruments have the ability to integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols.

Learn More

F.A.Q.

Accessories

PosiTector Gage Bodies

PosiTector Gage Bodies can be used with all PosiTector probes. Choose from Standard or Advanced models.

Learn More

PosiTector Probes

PosiTector bodies accept all PosiTector probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, hardness and ultrasonic thickness gage.

Learn More

Bluetooth Printer

Battery-operated andlight weight, this Bluetooth Printer prints readings and statistical summariesvia Bluetooth from Advanced models.

Learn More

AC Power Kit

Use for continuous operation. This kit supplies several alternate power solutions for your battery-operated PosiTector. Operate your gage without the need for batteries.

Learn More
